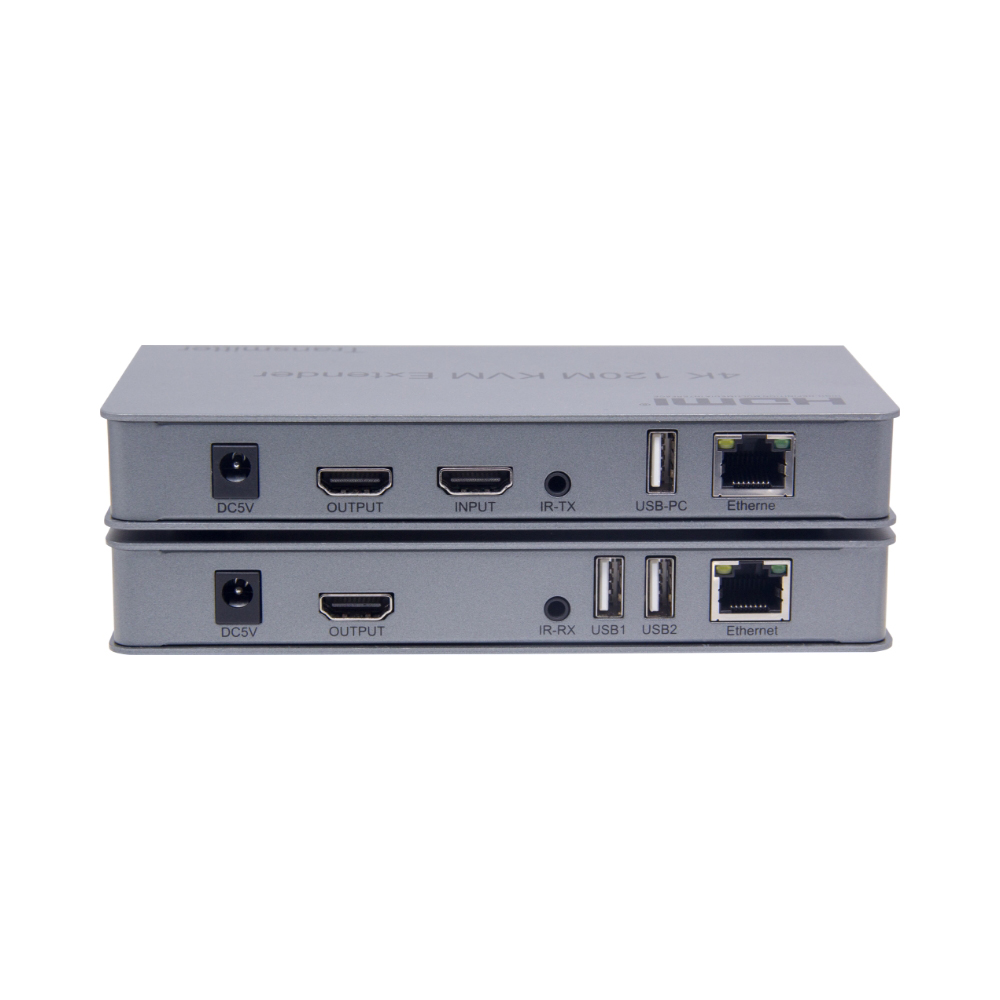

Hdmi 4k Kvm Extender 120m Cat5e/6 With Usb, Ir & Audio

Extend your HDMI signal up to 120 meters with this 4K HDMI KVM Extender, designed for reliable long-distance audio, video, and USB transmission over a single Cat5e/Cat6 network cable. Supporting 4K Ultra HD resolution, USB keyboard and mouse control, IR remote extension, stereo audio output, and HDMI loop-out, this extender is an ideal solution for conference rooms, control centers, digital signage, home theaters, classrooms, and professional AV installations.
With HDMI 1.4 and HDCP 1.4 compatibility, the transmitter (TX) and receiver (RX) ensure smooth, high-quality video transmission while maintaining low power consumption and stable performance over long distances. Both units also feature independent 3.5mm stereo audio outputs, making it easy to connect external speakers or audio systems.

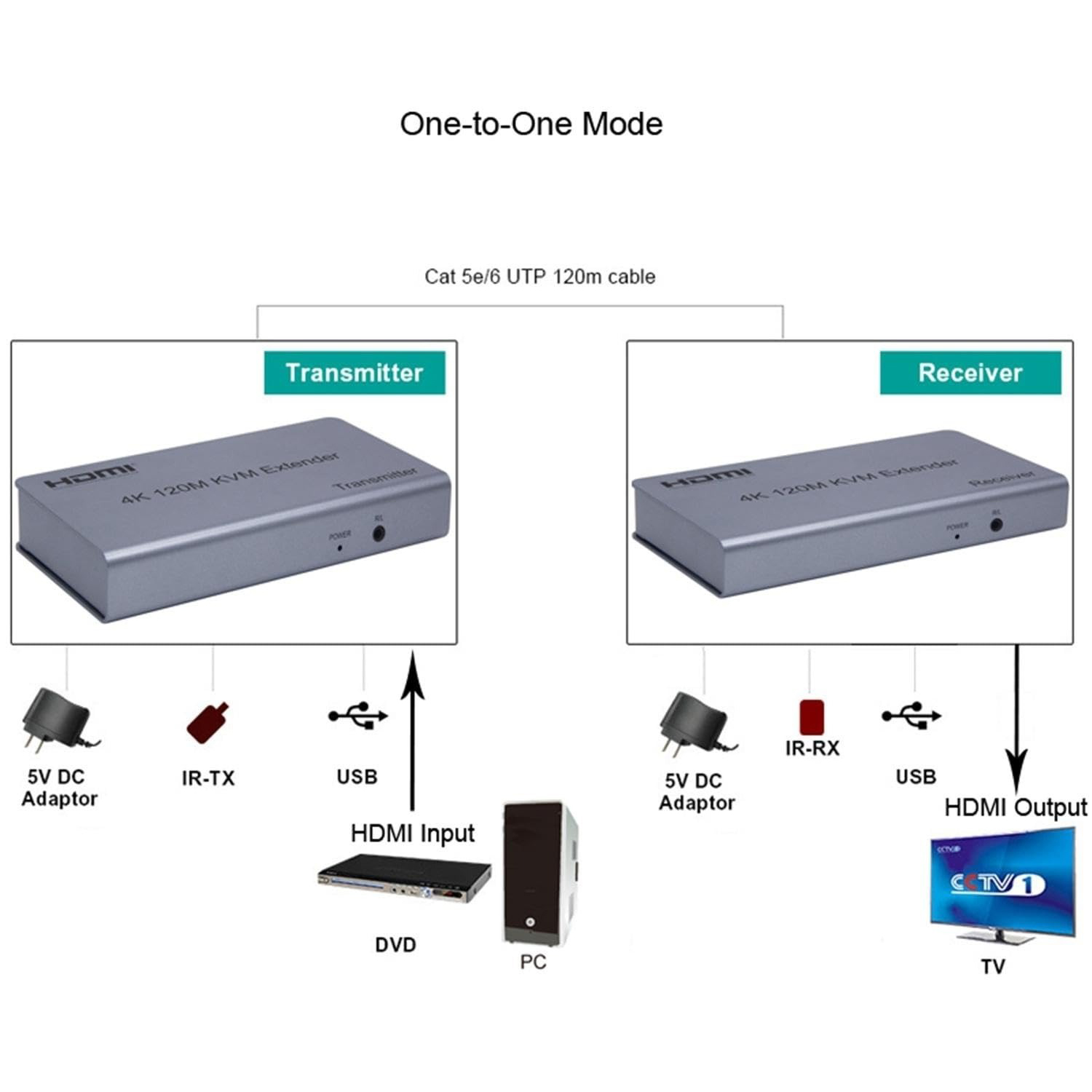

The built-in KVM functionality allows you to control a remote computer using a USB keyboard and mouse, while IR pass-through lets you operate source devices from the display location. A convenient HDMI loop-out on the transmitter enables simultaneous local monitoring and remote display.
Key Features
Supports 4K Ultra HD video transmission
Extends HDMI signal up to 120 meters over Cat5e/Cat6 cable
HDMI 1.4 and HDCP 1.4 compliant
Built-in USB KVM support for remote keyboard and mouse control
HDMI Loop-Out for local display monitoring
IR extension for remote source device control
Dual 3.5mm stereo audio output on TX and RX
Low power consumption with stable, reliable performance
Plug-and-play installation with LED status indicators
Ideal for conference rooms, classrooms, home theaters, control centers, and digital signage applications.
Specifications
Maximum Transmission Distance: 120m (Cat5e/Cat6)
Video Resolution: 4K, 1080p, 720p, 576p, 480p
Maximum Bandwidth: 340MHz
Data Rate: 3 × 3.4Gbps
HDMI Cable Length (Input/Output): Up to 10m
Power Supply: DC 5V/1A
Operating Temperature: -15°C to +55°C
Dimensions: 107 × 105 × 27.3 mm

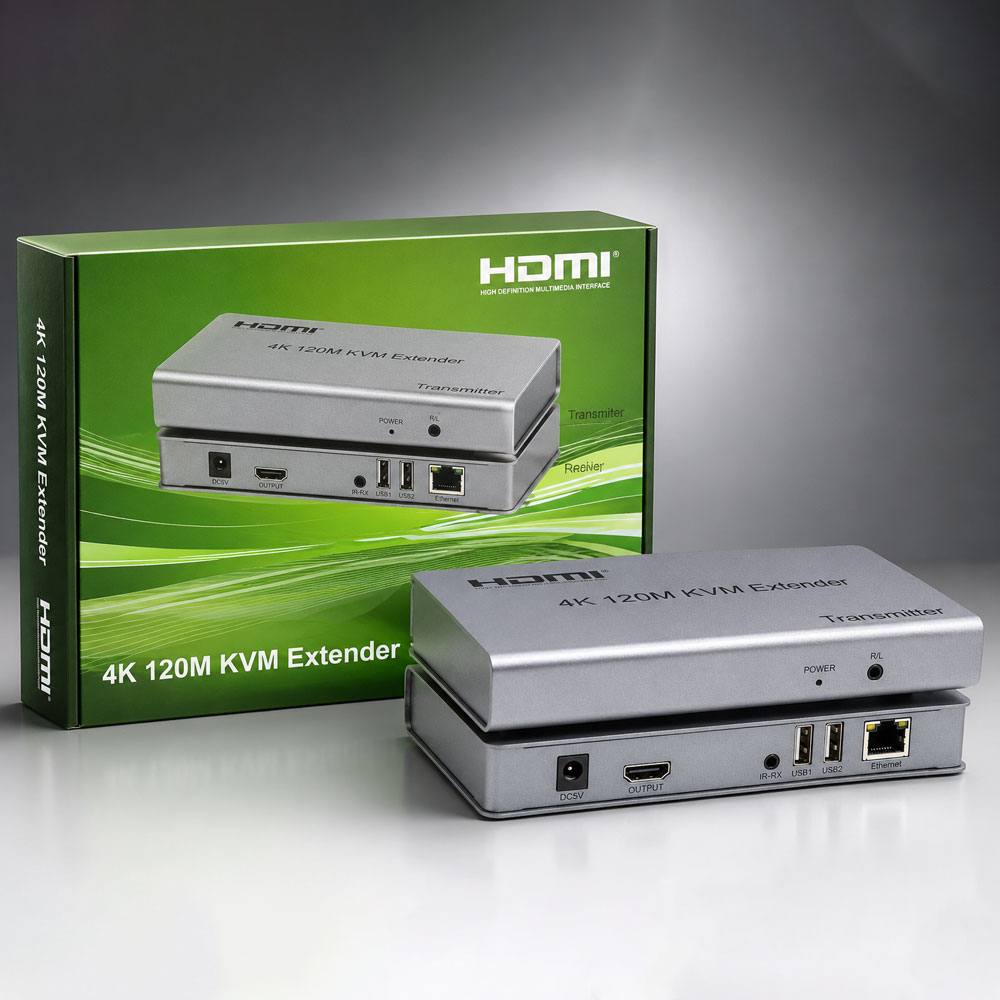

Package Includes
1 × HDMI KVM Extender Transmitter (TX)
1 × HDMI KVM Extender Receiver (RX)
1 Pair × IR Extension Cables
2 × 5V/1A Power Adapters
1 × User Manual
