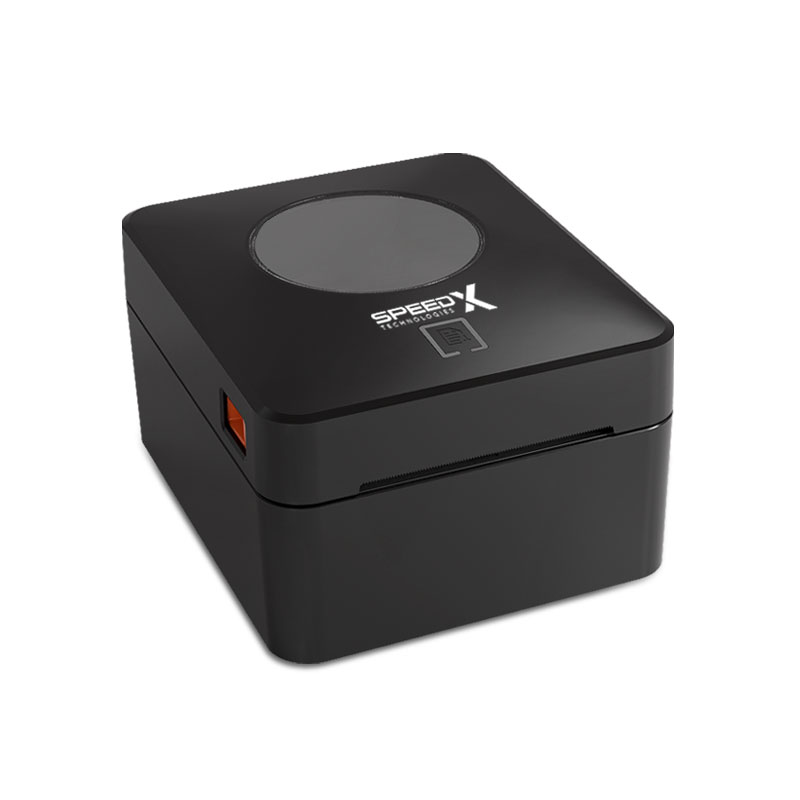

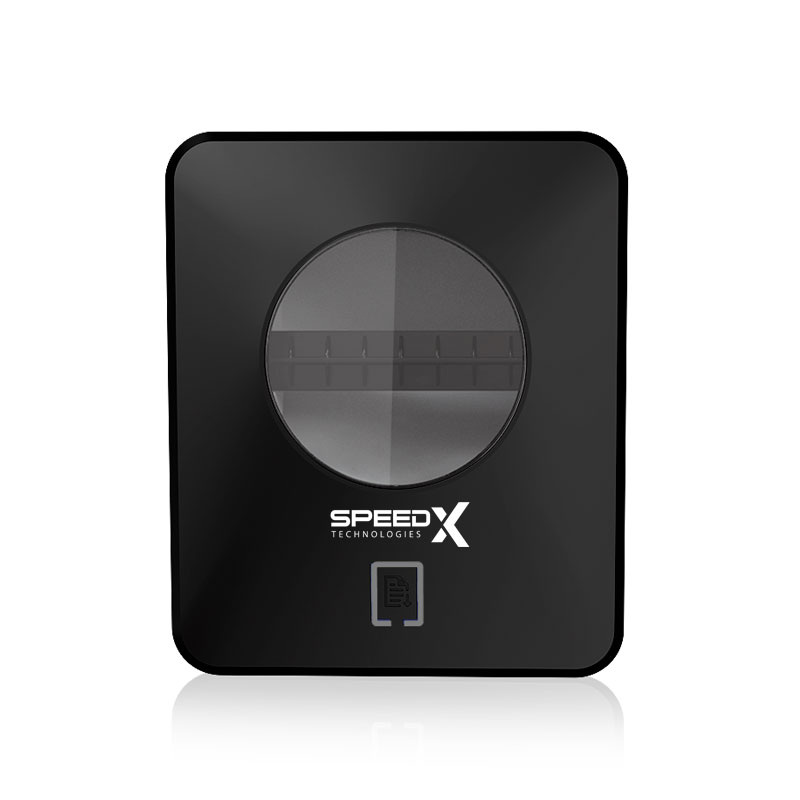

Speedx Sp-690ub 4-inch Thermal Label Printer (usb/bluetooth)

Product Description

The SpeedX SP-690UB 4-Inch Thermal Label Printer is a versatile and high-performance direct thermal printer designed for efficient barcode, label, receipt, and POS printing. With a fast printing speed of up to 160 mm/sec and 203 DPI resolution, it delivers clear and professional-quality prints for retail stores, warehouses, offices, logistics businesses, and point-of-sale environments.

The SP-690UB supports multiple connectivity options, including USB, Bluetooth, and making it easy to integrate into different working environments. It is compatible with Windows and Mac, while also supporting iOS and Android SDK, providing flexible compatibility for modern business applications.
This 4-inch thermal label printer supports paper widths from 25 mm to 110 mm, with a maximum effective printing width of 104 mm. It can handle continuous, gap, black-mark, fan-fold, and punched-hole thermal media, making it suitable for a wide range of labeling requirements.
The printer supports popular printing commands including TSPL, CPCL, and ESC/POS, along with a wide range of 1D barcodes such as Code 39, Code 128, EAN, UPC, ITF and more. It also supports QR Code and PDF417 2D barcodes, making it suitable for modern barcode and labeling applications.
With multiple built-in media sensors, including gap, black-mark, paper-exit, and cover-opening sensors, the SP-690UB is designed for reliable and convenient printing operation. Its compact 215 × 180 × 115 mm design and approximately 1.5 kg weight with accessories make it practical for desktops, counters, and workstations where space is limited.

Key Features
?160 mm/sec Fast Printing Speed for efficient business printing
?203 DPI Resolution for sharp text, labels, and barcodes
?4-Inch Printing Support with up to 104 mm effective print width
?USB & BT Connectivity with Bluetooth and USB
?Windows & Mac Compatible
?iOS & Android SDK Support
?TSPL, CPCL & ESC/POS printing command support
?Supports 1D and 2D Barcodes
?Supports QR Code & PDF417
?Compatible with continuous, gap, black-mark, fan-fold and punched-hole media
?Multiple built-in paper and cover sensors
?Compact and professional desktop design
?50 KM TPH Life for dependable long-term operation
?Operating temperature from 0°C to 50°C
Technical Specifications

Specification    Details
Model    SpeedX SP-690UB
Printing Method    Direct Thermal
Printing Speed    Up to 160 mm/sec
Resolution    203 DPI
Effective Print Width    104 mm
Available Paper Width    25–110 mm
Paper Thickness    0.06–0.30 mm
Interfaces    USB/ Bluetooth
Commands    TSPL / CPCL / ESC/POS
1D Barcodes    Code 39, Code 128, EAN, UPC, ITF and more
2D Barcodes    QR Code, PDF417
Sensors    Gap / Black Mark / Paper Exit / Cover Opening
OS Support    Windows / Mac
Mobile Support    iOS / Android SDK
Printer Dimensions    215 × 180 × 115 mm
Weight    1.5 kg with accessories
TPH Life    50 KM
Power Input    AC 100–240V, 50–60Hz
Power Output    DC 24V / 2.5A
Noise Level    Less than 60 dB
Available Colors    White / Black / Pink / Blue

Ideal for
The SpeedX SP-690UB Thermal Label Printer is suitable for retail shops, POS systems, warehouses, inventory management, logistics, shipping labels, barcode printing, product labeling, and office applications where fast and reliable thermal printing is required.
